Template: Pond Limits of Construction
This template is anchored from a line or shape representing
| horizontally | the limits of construction |
| vertically | Following the Terrain exactly will make the outside of the berm coincident with the limit of construction (use Profile From Surface, No Adjustment, Triangles) |
Targets: the keyed-in elevation of the Inside of Berm is the Freeboard value plus the Inside Berm elevation

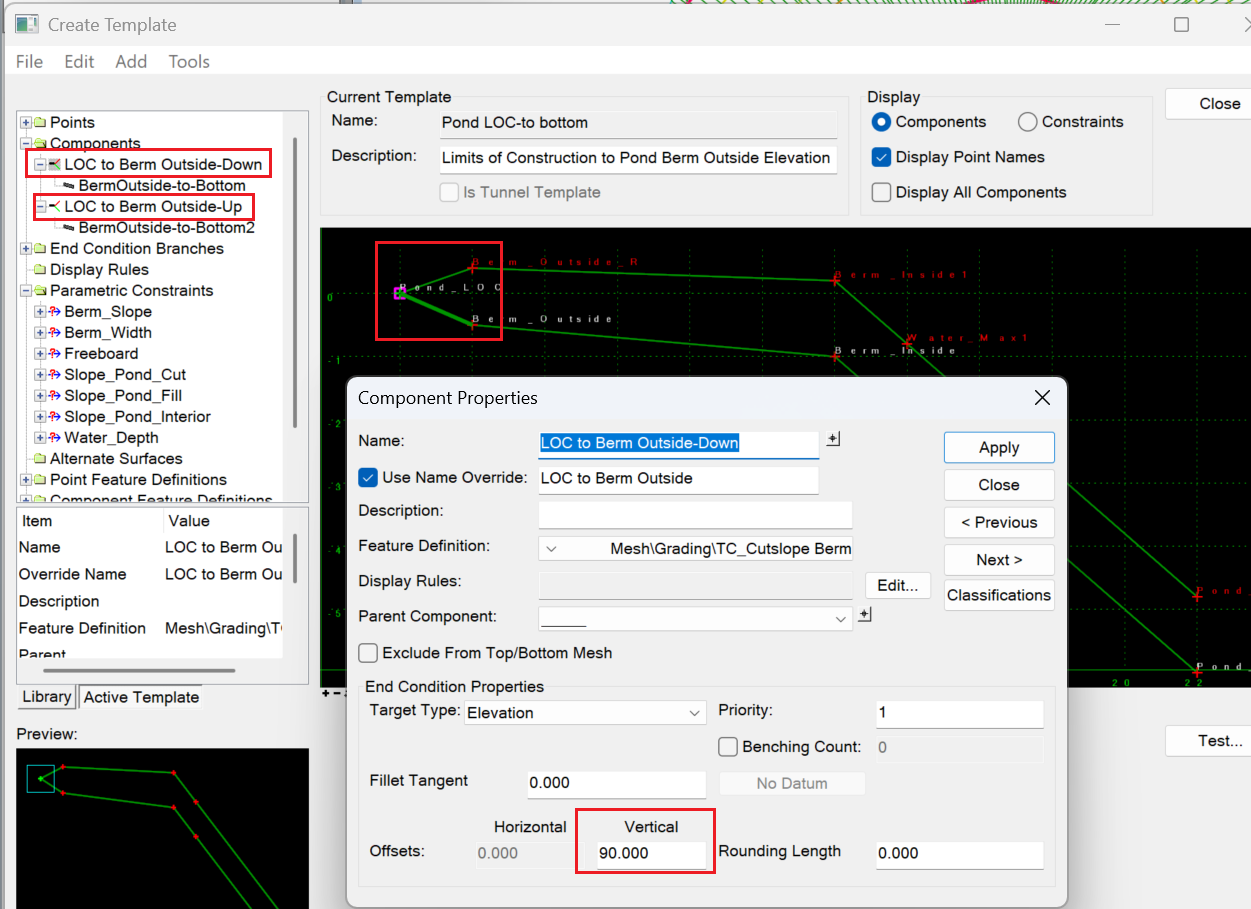

| This won't work unless you: | key in the elevation of the Inside of Berm in the two (Cut and Fill) End Condition components |
Parametric Constraints:
| Freeboard | required freeboard value (Example: 1-ft). The Maximum Water Elevation is the Elevation of the Inside Berm minus the Freeboard. |
| Depth_Water | The is the distance from the Maximum Water Elevation to the bottom of the pond. Example: 4-ft. |
| Berm_Slope_Max | the berm's maximum slope; the berm is variable between the positive and negative maxima. |
| Berm_Width | berm width |
| Slope_Pond_Cut | Exterior Pond Cut Slope |
| Slope_Pond_Fill | Exterior Pond Fill Slope |
| Slope_Pond_Interior | Pond Interior side Slope (same slope above and below the Freeboard point / Max Water elevation) |
