Page 5 of 8
Creating the Draping Terrain from the two Profiles
Video: Creating the Warp Surface.mp4
1) Use Terrain > Create from Elements to create a terrain.
Feature Type: Break Line
Edge Method: None.
Feature Definition: Proposed Drainage Contours
Name: Draping for Parking.

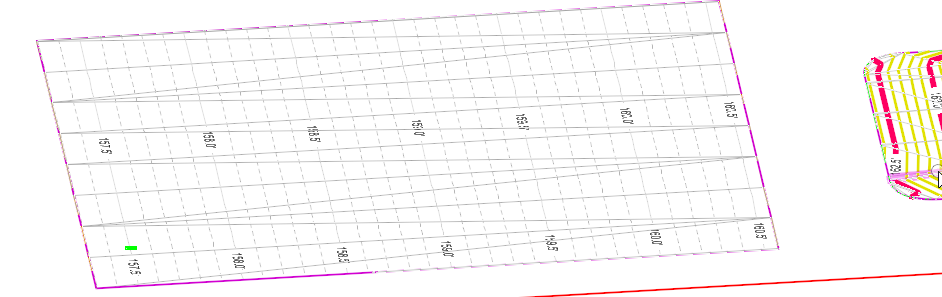

This is a better "QC" Contour and Triangle Display:
