Draping the Parking Features
Video: Draping the Parking Features.mp4
Now we can "Drape" the Parking Lot Features to the "Draping Terrain".
We will use Profile from Surface again, this time selecting the Draping Terrain instead of the existing terrain.
1) Create a Selection Set of all the Parking Features - we have one perimeter and two islands.
2) Click Geometry > Vertical > Profile Creation > Profile from Surface.
3) Set Profile Selection to All
4) Set Profile Adjustment to None.

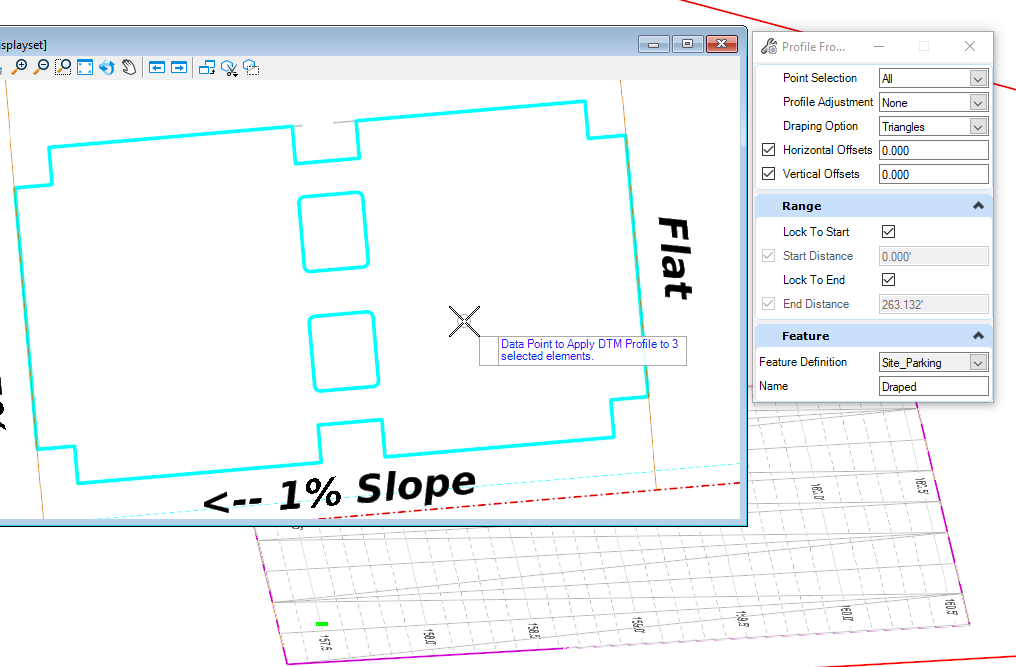

5) At the Data Point to Apply DTM Profile prompt, place a Data Point.
6) At the Locate Reference Surface prompt, click on the Draping Surface.
7) Define the Start and Stop Distances (<Alt> will lock to the Begining and End of the Element)
8) Confirm the remaining setting with Data Points

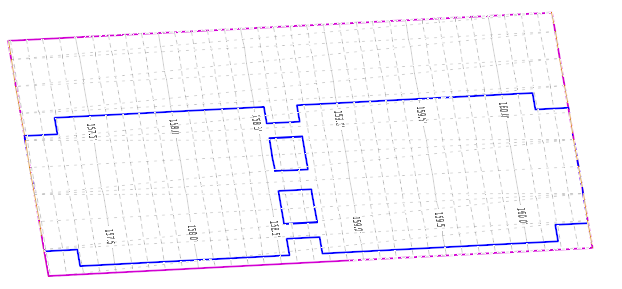

The Profile is created. If it is set to Active, you will see the elements in the 3D Model
If you do not see the 3D parking, Review the Profile Model of any missing or partial elements.
